• 60/40 flip-up rear split bench seat
• Deployable cupholder under middle seat
• Display center -inc: warning messages & text functions
• Driver & front passenger door scuff plates
• Front passenger side A-pillar grab handle
• Front pwr point
• Instrument panel mounted cigar lighter
• Manual air conditioning
• Rear door cupholders
• Rear pwr point
• SecuriLock anti-theft ignition (PATS)
• Tilt steering column

• (2) front tow hooks
• (4) pickup box tie-down hooks
• 2-ton jack
• 4-wheel drive -inc: electronic-shift-on-the fly (ESOF)
• 6.5' pickup box
• 6900# GVWR, 1510# maximum payload
• 78-amp/hr (750CCA) maintenance-free battery
• Easy Fuel capless fuel filler system
• Four-wheel-down towing
• Gas shock absorbers
• Leaf spring rear suspension w/2-stage variable rear springs
• Long-spindle double wishbone front suspension w/coil-over-shock IFS
• Pwr front/rear disc brakes
• Pwr rack & pinion steering
• Trailer sway control

• 3-point safety belts at all rear seat positions
• AdvanceTrac w/roll stability control (RSC)
• Anti-lock braking system (ABS)
• Auto lock safety belt feature for child seats
• Center front 2-point safety belt
• Dual note horn
• Dual stage driver & front passenger seat-mounted side airbags
• Dual stage driver & passenger front airbags
• Hill start assist
• Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors
• Safety Canopy front/rear outboard side curtain airbags
• SOS post crash alert system
• Tire pressure monitoring system

3.7L V6 FFV ENGINE

• (STD)

• Variable speed intermittent wipers
• Full-size spare tire w/lock under frame winch-type carrier safety catch
• Black door & tailgate handles
• Removable tailgate w/key lock & lift assist
• P235/75R17 all-terrain black side wall tires
• Black front/rear stone cuffs
• Fixed rear window
• Cargo lamp integrated w/high mount stop light
• Four Wheel Drive
• Tow Hooks
• Power Steering
• 4-Wheel Disc Brakes
• Tires - Front All-Terrain
• Tires - Rear All-Terrain
• Conventional Spare Tire
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• AM/FM Stereo
• Split Bench Seat
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Immobilizer
• A/C
• Passenger Vanity Mirror
• ABS
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 155
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 15.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3750
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 3126
• Curb Weight - Rear (lbs): 2207
• Gross Vehicle Weight Rating Cap (lbs): 6900
• Gross Combined Wt Rating (lbs): 11100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 825
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 5500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1375
• Suspension
• Suspension Type - Front: Double-wishbone
• Suspension Type - Rear: Live axle
• Spring Capacity - Front (lbs): 3750
• Spring Capacity - Rear (lbs): 3800
• Axle Type - Front: Long-Spindle
• Axle Type - Rear: Semi-Float Beam
• Axle Capacity - Front (lbs): 4050
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 36.1
• Shock Absorber Diameter - Rear (mm): 32.0
• Stabilizer Bar Diameter - Front (in): 1.3
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 0.6
• Rear Brake Rotor Diam x Thickness (in): 13.7 x 0.5
• Tires
• Front Tire Order Code: T7B
• Rear Tire Order Code: T7B
• Spare Tire Order Code: T7B
• Front Tire Size: P235/75R17
• Rear Tire Size: P235/75R17
• Spare Tire Size: P235/75R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: 17.0
• Turning Diameter - Curb to Curb (ft): 47.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Fully-boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 144.5
• Length, Overall w/o rear bumper (in): 231.7
• Width, Max w/o mirrors (in): 79.2
• Height, Overall (in): 75.9
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 153.0
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.8
• Cargo Box Width @ Top, Rear (in): 60.3
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): 60.3
• Cargo Volume (ft³): 65.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.4
• Front Shoulder Room (in): 65.9
• Front Hip Room (in): 60.5
• Second Head Room (in): 39.7
• Second Leg Room (in): 33.4
• Second Shoulder Room (in): 65.7
• Second Hip Room (in): 65.4
• Summary

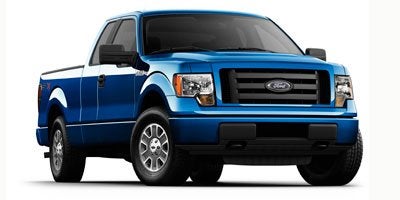

• Vehicle Name: Ford F-150
• Body Style: Extended Cab Pickup
• Body Code: 145" WB
• Emissions
• EPA Greenhouse Gas Score: 3
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.2
