• Black roof rails
• Painted front bumper (body-color upper/accent color lower)
• Accent color rear step bumper
• Color-keyed upper body-side moldings w/accent color rocker panels
• Textured platinum grille
• Black fold-away pwr mirrors
• Solar-tinted glass-inc: windshield, front door windows
• Privacy glass-inc: rear door/rear windows
• Speed-sensitive intermittent windshield wipers
• Body-color contoured door handles
• Composite cargo bed
• Tailgate-inc: integral lock w/black handle, black inner panel liner & top rail molding
• Hood sound insulation

• 5-passenger seating
• Cloth front captains chairs
• 60/40 fold flat rear bench w/headrests
• Floor console-inc: front/rear dual cup holders, padded armrest, removable soft pack storage bag, convenience clip
• Textured insulated black floor molding
• Color-keyed carpeted floor mats
• Black steering wheel
• Instrument panel cluster-inc: warning lights, trip odometer, tachometer, fuel, oil pressure, coolant temp, voltmeter
• Warning chimes-inc: headlights-on, key-in-ignition, seat belt
• Pwr windows-inc: "one-touch-down" driver window, 3-position pwr rear window
• Pwr door locks
• Securilock passive anti-theft system
• Air conditioning
• ETR AM/FM stereo radio w/compact disc/cassette-inc: digital clock, 2- front/2-rear speakers (60-watts continuous pwr)
• Glove box w/color-keyed latch/lamp
• Ash tray w/interior lamp
• Black cigarette lighter
• Front/rear 12-volt pwr points
• Manual day/night rearview mirror
• Color-keyed cloth headliner
• Dual color-keyed cloth visors w/passenger side vanity mirror
• (3) grab handles
• (2) color-keyed coat hooks
• Front dome/map light
• Rear dome/map light
• Cargo area dome light
• (4) box floor/(6) box rail tie-down hooks

• Driver & front passenger airbags
• 4-wheel anti-lock braking system
• Front/rear outboard 3-point safety belts
• Front adjustable-height shoulder safety belts
• 2nd row child seat tether anchors
• Child safety rear door locks
• Side door intrusion beams
• Dual note horn

4.0L (245) SOHC SEFI V6 ENGINE

• (STD)

• Rear Wheel Drive
• Conventional Spare Tire
• Aluminum Wheels
• Power Steering
• Front Disc/Rear Drum Brakes
• Power Mirror(s)
• Privacy Glass
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Cloth Seats
• Bucket Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Power Windows
• Immobilizer
• AM/FM Stereo
• Cassette
• CD Player
• Power Outlet
• Front Reading Lamps
• Rear Reading Lamps
• Driver Air Bag
• Passenger Air Bag
• Child Safety Locks

• Mileage
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 7.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2710
• Gross Axle Wt Rating - Rear (lbs): 2900
• Curb Weight - Front (lbs): 2250
• Curb Weight - Rear (lbs): 1853
• Gross Vehicle Weight Rating Cap (lbs): 5660
• Gross Combined Wt Rating (lbs): 7000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2740
• Dead Weight Hitch - Max Tongue Wt. (lbs): 274
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2740
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 274
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Leaf Spring
• Spring Capacity - Front (lbs): 2900
• Spring Capacity - Rear (lbs): 2900
• Axle Type - Front: Independent SLA
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 2710
• Axle Capacity - Rear (lbs): 3200
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 1.375
• Shock Absorber Diameter - Rear (mm): 1.375
• Stabilizer Bar Diameter - Front (in): 1.34
• Stabilizer Bar Diameter - Rear (in): 0.77
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.0 x 0.34
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.0 x 2.25
• Tires
• Front Tire Order Code: T53
• Rear Tire Order Code: T53
• Front Tire Size: P235/70R16
• Rear Tire Size: P235/70R16
• Spare Tire Size: P235/70R16
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power Rack & Pinion
• Steering Ratio (:1), On Center: 17.5
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.1
• Turning Diameter - Wall to Wall (ft): 44.9
• Frame
• Frame Type: Boxed w/Single Channel
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 22.4
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 125.9
• Length, Overall w/o rear bumper (in): 205.9
• Width, Max w/o mirrors (in): 71.8
• Height, Overall (in): 70.1
• Overhang, Front (in): 34.6
• Overhang, Rear w/o bumper (in): 45.4
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 31.8
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 6.7
• Ground Clearance, Rear (in): 6.7
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 50.0
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 51.4
• Cargo Box Width @ Wheelhousings (in): 41.2
• Cargo Box (Area) Height (in): 19.7
• Tailgate Width (in): 49.5
• Cargo Volume (ft³): 29.6
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 39.4
• Front Leg Room (in): 42.4
• Front Shoulder Room (in): 56.7
• Front Hip Room (in): 52.7
• Second Head Room (in): 38.9
• Second Leg Room (in): 37.8
• Second Shoulder Room (in): 56.9
• Second Hip Room (in): 52.7
• Summary

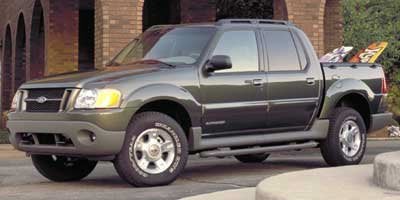

• Vehicle Name: Ford Explorer Sport Trac
• Body Style: 4 Door
• Body Code: 126" WB
